Item description/product images |
|
|

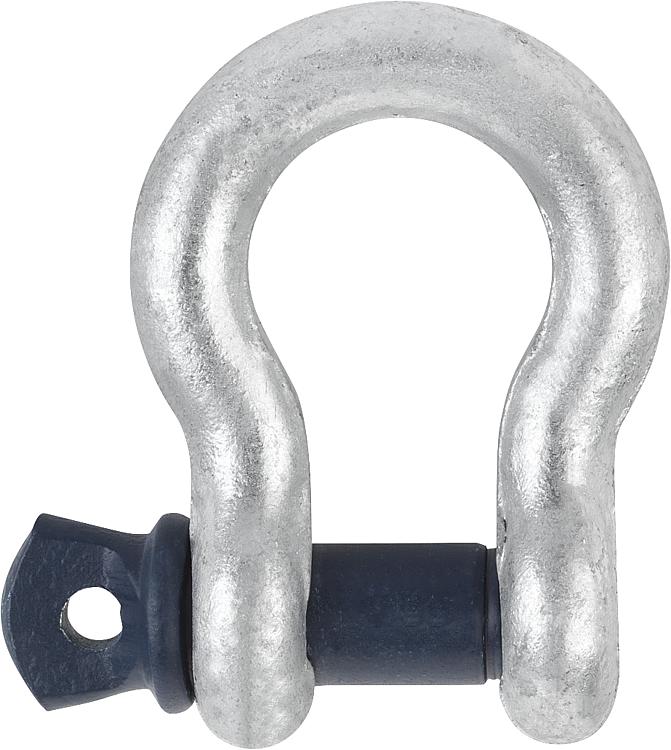

DescriptionMaterial:Steel.Version:Bow form.Note:Shackles and bolts may vary in colour.
Paint may cause the thread to be stiff.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | -
- 19,8
- 21,3
- 26,2
- 29,5
- 33
- 42
- 51
- 58
- 68
| -
- 12
- 13
- 16,8
- 19
- 20,6
- 27
- 31,8
- 36,6
- 43
| -
- 6,4
- 7,9
- 9,6
- 11,2
- 12,7
- 16
- 19
- 22
- 25
| -
- 8
- 9,5
- 11
- 12,7
- 16
- 19
- 22,2
- 25,4
- 28,5
| | -
- 1/4
- 5/16
- 3/8
- 7/16
- 1/2
- 5/8
- 3/4
- 7/8
- 1
| -
- 500
- 750
- 1000
- 1500
- 2000
- 3250
- 4750
- 6500
- 8500
| | | | Reset |
|---|
Order No.

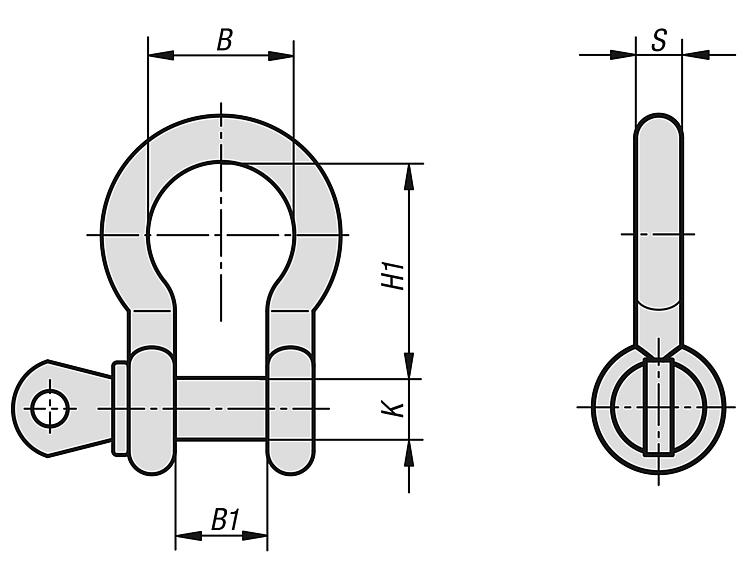

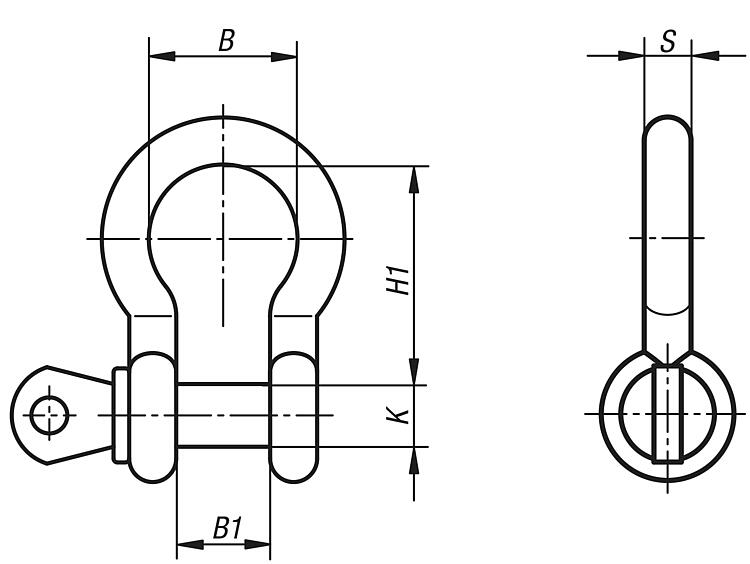

| B | B1 | S | K | H1 | Inches | Permissible
load
kg | CAD | Acc. | Price | Order |
|---|
| 07715-0050008 | 19,8 | 12 | 6,4 | 8 | 28,7 | 1/4 | 500 |  | | on request | | | 07715-0075010 | 21,3 | 13 | 7,9 | 9,5 | 31 | 5/16 | 750 | | | on request | | | 07715-0100011 | 26,2 | 16,8 | 9,6 | 11 | 36,5 | 3/8 | 1000 | | | on request | | | 07715-0150012 | 29,5 | 19 | 11,2 | 12,7 | 43 | 7/16 | 1500 | | | on request | | | 07715-0200016 | 33 | 20,6 | 12,7 | 16 | 48 | 1/2 | 2000 | | | on request | | | 07715-0325019 | 42 | 27 | 16 | 19 | 60 | 5/8 | 3250 | | | on request | | | 07715-0475022 | 51 | 31,8 | 19 | 22,2 | 71 | 3/4 | 4750 | | | on request | | | 07715-0650025 | 58 | 36,6 | 22 | 25,4 | 84 | 7/8 | 6500 | | | on request | | | 07715-0850028 | 68 | 43 | 25 | 28,5 | 95 | 1 | 8500 | | | on request | |
