        Flip-Flop hoist rings

Item description/product images

DescriptionMaterial:Body carbon steel. Bracket steel.Version:Black oxidised. Bracket hardened.Note:Every hoist ring undergoes an additional visual inspection after load testing (6x safety factor).
A safety data sheet for installation is included with every hoist ring.
Do not use spacer washers between the bush flange and support beam.
Tighten the screws to the stated torque and check and re-tighten regularly. After installation check if the ring swivels freely in both directions.
Lift with care! Avoid impacts!
In no event must the permissible load stamped on the hoist ring be exceeded.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07772 Flip-Flop hoist rings

160 kB

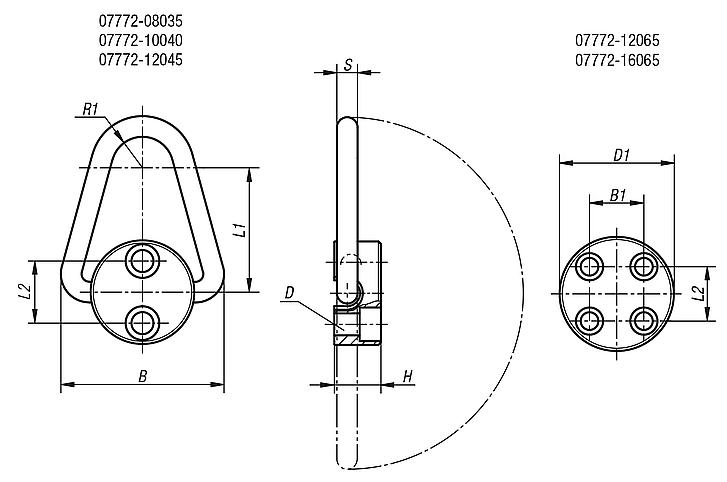

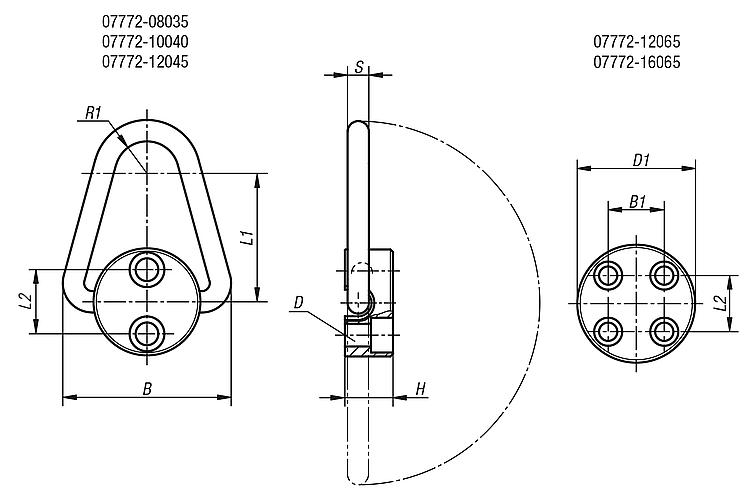

Drawings

Item selection/filter

Order No.	D for screw DIN 912	D1	B	B1	H	L1	L2	R1	S	Tightening torque Nm	max. permissible load kg	Price
07772-08035	M8X35 (2x)	45	65	-	19	51	25,4	13	8	10	900	on request
07772-10040	M10X40 (2x)	57	81	-	22	64	28,6	16	10	15	1100	on request
07772-12045	M12X45 (2x)	64	100	-	29	76	38,1	19	13	35	2250	on request
07772-12065	M12X65 (4x)	80	130	31,8	35	102	41,3	22	19	45	5400	on request
07772-16065	M16X65 (4x)	92	160	31,8	48	127	52,4	25,4	25,4	100	9000	on request
