        Slip hooks grade 10

Item description/product images

Show/filter all items

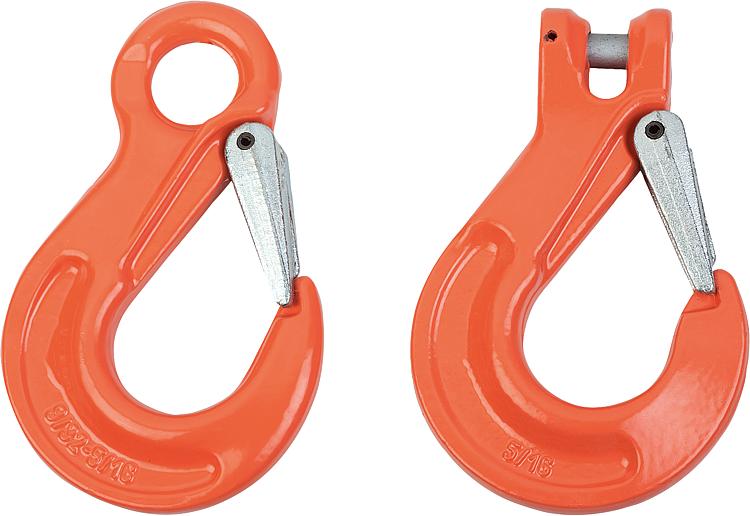

DescriptionMaterial:Steel.Version:Grade 10.
Plastic-coated, red.
Latch forged and electro zinc-plated.Note:Slip hooks with forged latch.

The hooks correspond to the Machinery Directive and are BG certified (H stamp).Temperature range:From -40°C to 200°C = 100% permissible load
Up to 300°C = 90% permissible load

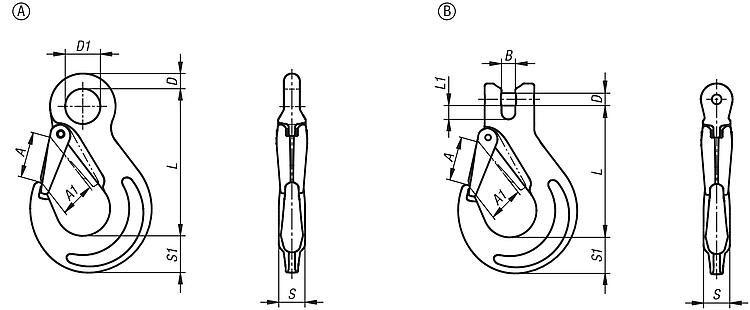

Up to 400°C = 75% permissible loadDrawing reference:

Form A: eye hook.

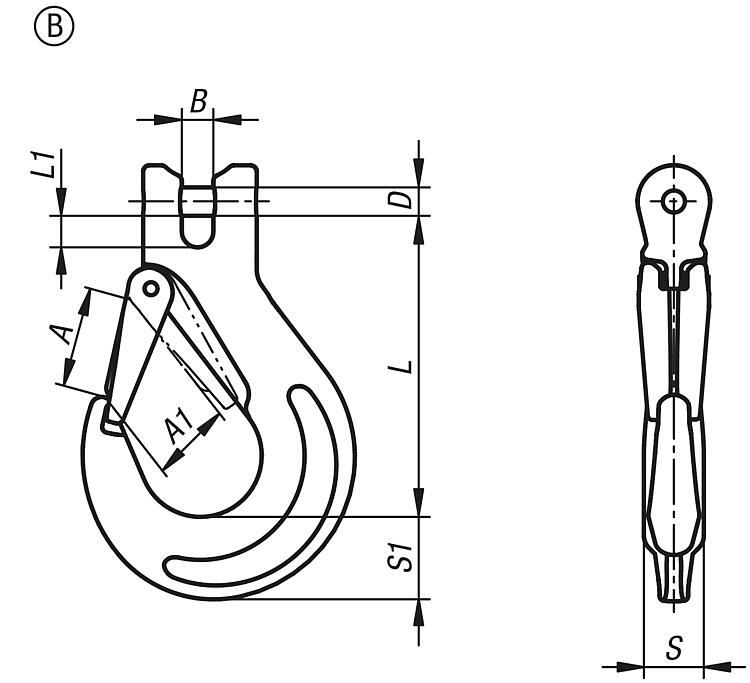

Form B: clevis hook.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07791 Slip hooks grade 10

167 kB

Drawings (total overview)

Eye slip hooks, Form A, grade 10

More information

Drawings

Item selection/filter

Order No.	Form	for chain mm	A	A1	D	D1	L	S	S1	Permissible load kg	Price
07791-11001400	A	6	26	19	10	20,5	85	16	20	1400	on request
07791-11002500	A	7-8	33	26	11	25	105	19	29	2500	on request
07791-11004000	A	10	40	31	16	34	131	26	33	4000	on request
07791-11006700	A	13	51	40	19	43	163	33	45	6700	on request
07791-11010000	A	16	66	45	24,5	50	183	40	50	10000	on request

Clevis slip hooks, Form B, grade 10

More information

Drawings

Item selection/filter

Order No.	Form	for chain mm	A	A1	B	D	L	L1	S	S1	Permissible load kg	Price
07791-21001400	B	6	26	19	7,2	7,5	69	8	15	20	1400	on request
07791-21001900	B	7	34	26	9,5	9	95	10	19	28	1900	on request
07791-21002500	B	8	34	26	9,5	10	95	10	19	28	2500	on request
07791-21004000	B	10	40	31	12	13	110	13,5	25	33	4000	on request
07791-21006700	B	13	51	40	15	16	136	17	30	40	6700	on request
07791-21010000	B	16	56	45	18	20	155	22	37	48	10000	on request
