        Self-locking hooks grade 10

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Grade 10.
Plastic-coated, red.Note:When lifting the load, the safety latch closes automatically and is securely locked by a locking mechanism at the rear of the hook. To open the latch, the locking mechanism must be unlocked manually.

The hooks correspond to the Machinery Directive and are BG certified (H stamp).Temperature range:From -40°C to 200°C = 100% permissible load
Up to 300°C = 90% permissible load
Up to 400°C = 75% permissible loadDrawing reference:

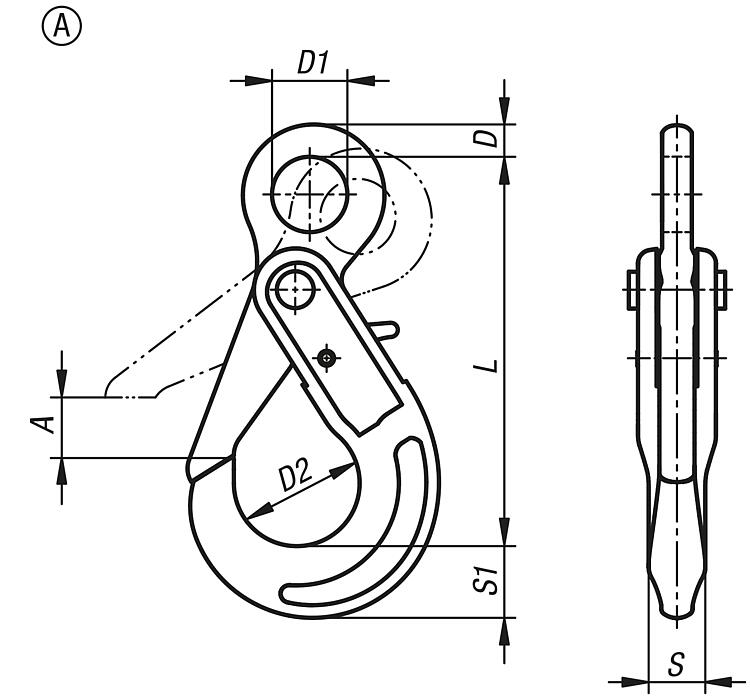

Form A: eye hook.

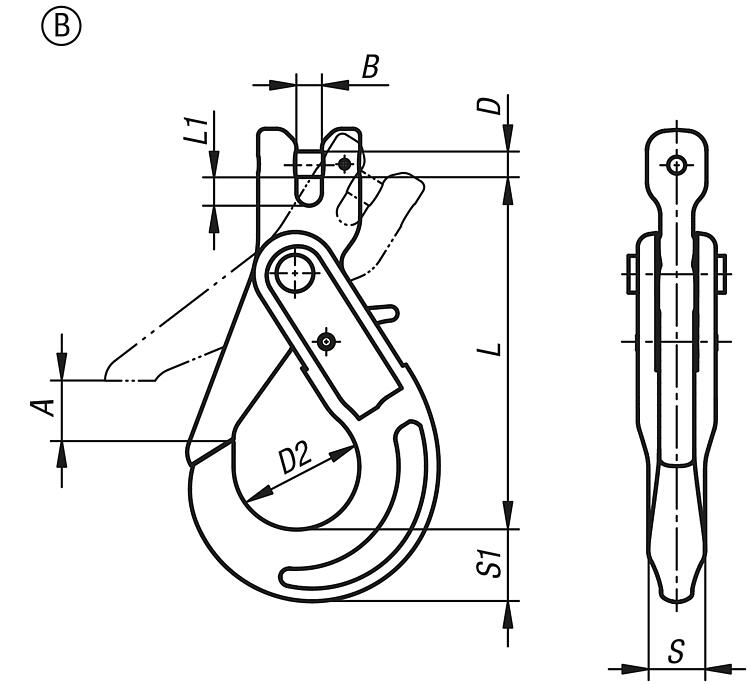

Form B: clevis hook.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07792 Self-locking hooks grade 10

174 kB

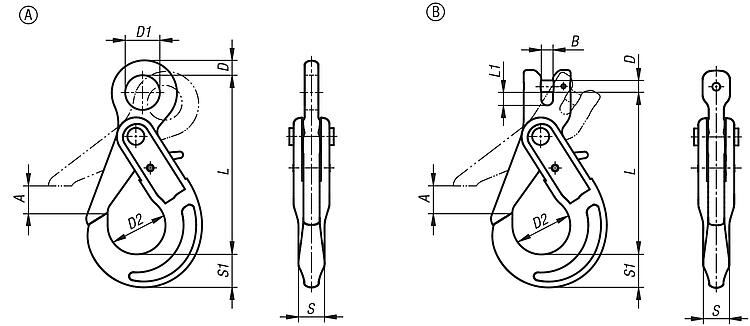

Drawings (total overview)

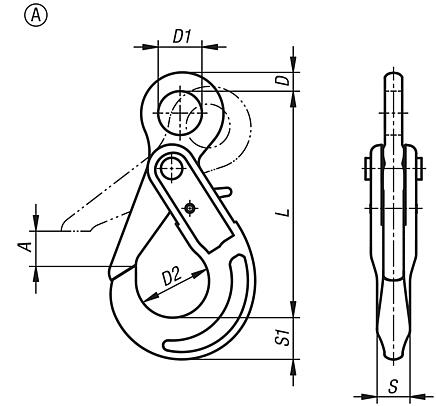

Eye self-locking hooks, Form A, grade 10

More information

Drawings

Eye self-locking hooks, Form A, grade 10

Item selection/filter

Order No.	Form	for chain mm	A	D	D1	D2	L	S	S1	Permissible load kg	Price
07792-11001400	A	6	28	11	21	35	109	16	21	1400	on request
07792-11002500	A	7-8	34	12	25	43	135	20	26	2500	on request
07792-11004000	A	10	45	16	33	56	168	25	30	4000	on request
07792-11006700	A	13	51	20	40	69	205	35	40	6700	on request
07792-11010000	A	16	60	27	50	80	251	36	50	10000	on request

Clevis self-locking hooks, Form B, grade 10

More information

Drawings

Clevis self-locking hooks, Form B, grade 10

Item selection/filter

Order No.	Form	for chain mm	A	B	D	D2	L	L1	S	S1	Permissible load kg	Price
07792-21001400	B	6	28	7	7,5	35	94	8	16	21	1400	on request
07792-21001900	B	7	34	9	9	43	123	10	20	26	1900	on request
07792-21002500	B	8	34	9	10	43	123	10	20	26	2500	on request
07792-21004000	B	10	45	12	13	56	143	14	25	30	4000	on request
07792-21006700	B	13	51	15	16	69	180	17	35	40	6700	on request
07792-21010000	B	16	60	19	21	80	215	19	36	50	10000	on request
