        Round sling hooks grade 8

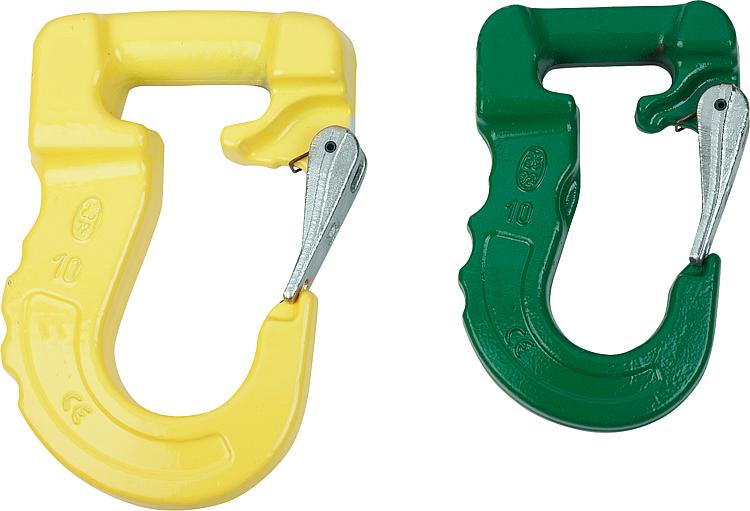

Item description/product images

DescriptionMaterial:Steel.Version:Grade 8.

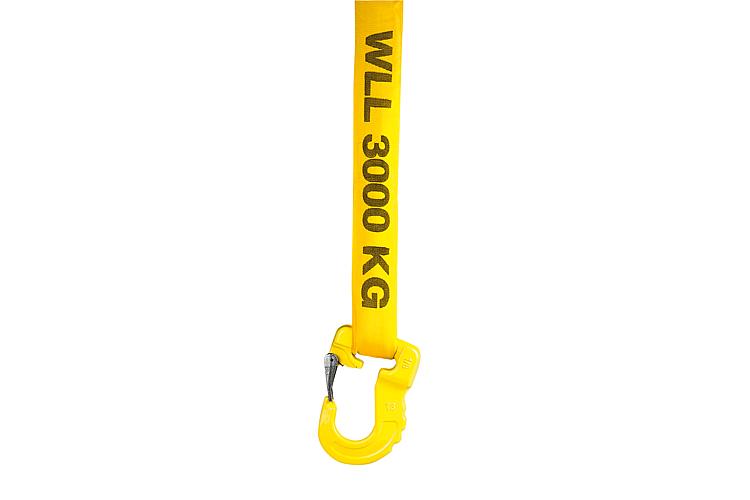

Plastic-coated.Note:Round sling hooks for quick suspension of textile lifting equipment such as hoist belts or round slings. The round sling hook is fitted with a robust, forged safety latch. All edges are rounded to protect the textile slings.

The colour of the round sling hook corresponds to the colour code assigned to textile lifting equipment that signifies the permissible loads.

The round sling hooks correspond to the Machinery Directive and are BG certified (H stamp).Temperature range:From -40°C to 200°C = 100% permissible load
Up to 300°C = 90% permissible load
Up to 400°C = 75% permissible loadSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07796 Round sling hooks grade 8

201 kB

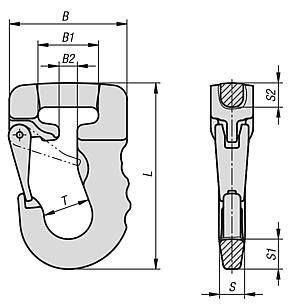

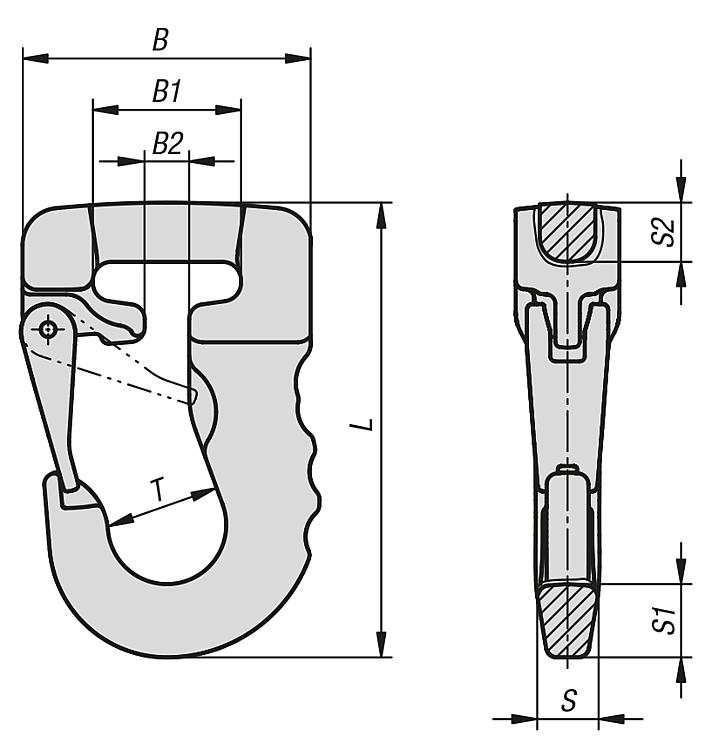

Drawings

Item selection/filter

Order No.	Main colour	B	B1	B2	L	S	S1	S2	T	Permissible load kg	Price
07796-801000	violet	78	41	12	123	17	20	16	31	1000	on request
07796-802000	green	91	44	19	148	21	26	17	40	2000	on request
07796-803000	yellow	113	55	21	175	25	32	25	50	3000	on request
07796-804000	grey	133	76	40	223	36	40	36	59,5	4000	on request
07796-805000	red	133	76	40	223	36	40	36	59,5	5000	on request
07796-806000	brown	133	76	40	223	36	40	36	59,5	6000	on request
07796-808000	blue	185	100	50	317	45	63	55	80	8000	on request
07796-810000	orange	185	100	50	317	45	63	55	80	10000	on request
