        Round sling links grade 8

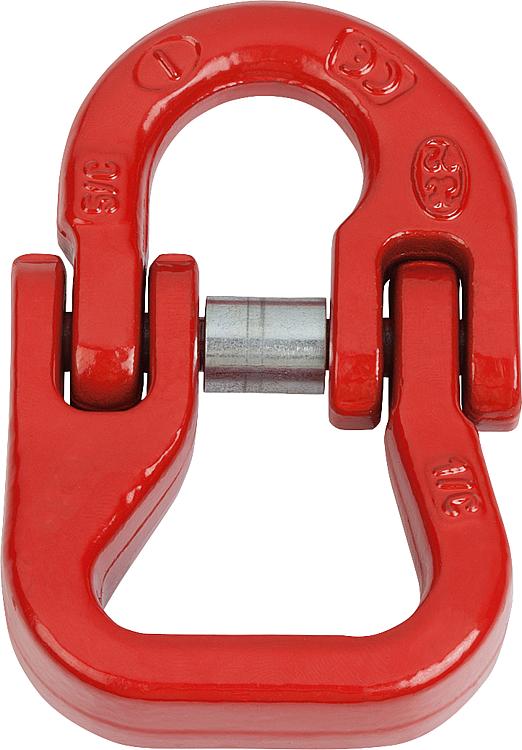

Item description/product images

DescriptionMaterial:Steel.Version:Grade 8.
Plastic-coated, red.Note:For joining hoist belts or round slings to chain components such as chain links or suspension rings.

The round sling links correspond to the Machinery Directive and are BG certified (H stamp).Temperature range:From -40°C to 200°C = 100% permissible load
Up to 300°C = 90% permissible load
Up to 400°C = 75% permissible loadSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07797 Round sling links grade 8

191 kB

Drawings

Item selection/filter

Order No.	for chain mm	B1	B2	L	L1	L2	S	S1	S2	S3	Permissible load kg	Price
07797-802000	7-8	40	19	58	27	20	9	10	24	14	2000	on request
07797-803150	10	40	25	77	34	30	11	13	30	12	3150	on request
07797-805300	13	55	28	96	44	36	16	16	36	16	5300	on request
07797-808000	16	67	36	115	53	40	21	21	44	24	8000	on request
