        Linear plain bearings

Item description/product images

DescriptionMaterial:Housing anodised aluminium.
Bearing surface Frelon (Teflon plus proprietary fillers).Version:Linear plain bearing with Frelon coating.Note:Virtually chemically inert.
Self-lubricating (no additional lubrication required).
High temperature range (-240 °C to +260 °C).
Dampens vibrations.
High static load capacity - projected surface area x P (P = 1034 N/cm²)
Suitable for food, pharmaceutical, medical and chemical applications.
Insensitive to dirt.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21495-01 Linear plain bearings

152 kB

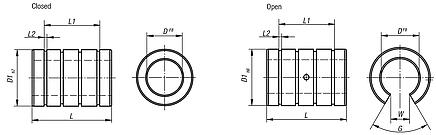

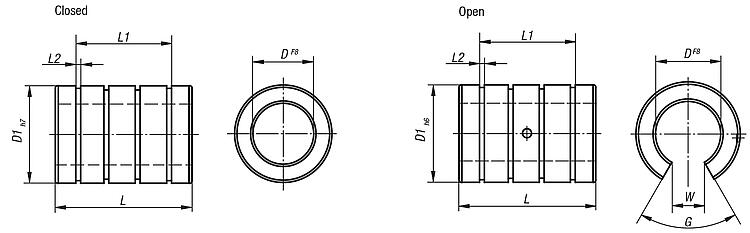

Drawings (total overview)

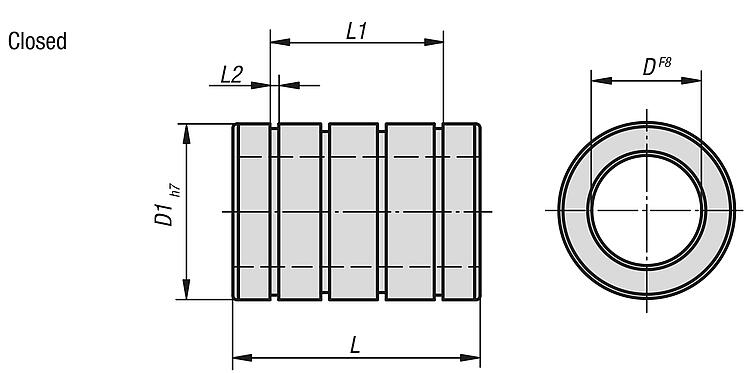

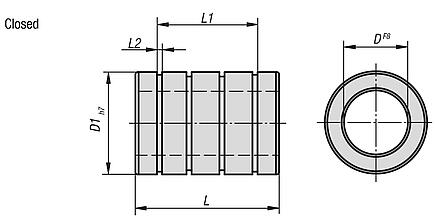

Linear plain bearings, closed

More information

Drawings

Item selection/filter

Order No.	Version 1	D	D1	L	L1	L2	Price
21495-01-050	closed	5	12	22	14,28	1,14	on request
21495-01-080	closed	8	16	25	16,28	1,14	on request
21495-01-100	closed	10	19	29	22,04	1,32	on request
21495-01-120	closed	12	22	32	22,64	1,32	on request
21495-01-160	closed	16	26	36	24,64	1,32	on request
21495-01-200	closed	20	32	45	31,26	1,63	on request
21495-01-250	closed	25	40	58	43,8	1,9	on request
21495-01-300	closed	30	47	68	51,8	1,9	on request

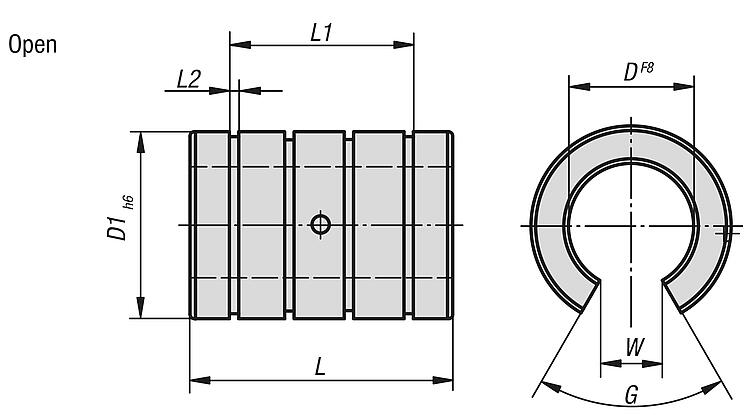

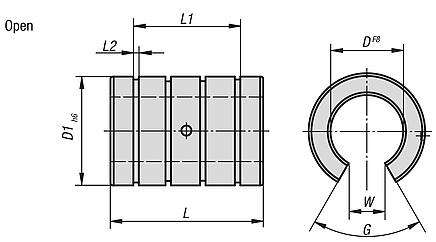

Linear plain bearings, open

More information

Drawings

Item selection/filter

Order No.	Version 1	D	D1	G	L	L1	L2	W	Price
21495-01-081	open	8	16	60°	25	16,28	1,14	5,1	on request
21495-01-101	open	10	19	60°	29	22,04	1,32	6,4	on request
21495-01-121	open	12	22	78°	32	22,64	1,32	7,6	on request
21495-01-161	open	16	26	78°	36	24,64	1,32	10,4	on request
21495-01-201	open	20	32	60°	45	31,26	1,63	10,8	on request
21495-01-251	open	25	40	60°	58	43,8	1,9	13,2	on request
21495-01-301	open	30	47	72°	68	51,8	1,9	14,2	on request
