        Miniature linear ball bearing

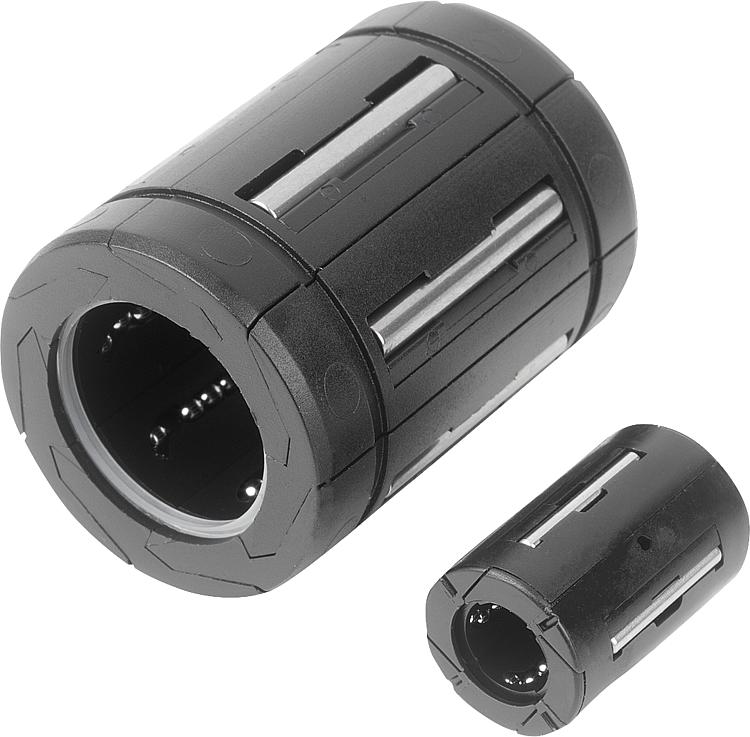

Item description/product images

DescriptionMaterial:

Housing, plastic.
Raceway, stainless steel 1.4034.
Balls, stainless steel 1.4125.

Note:Precision linear ball bearings with low friction.
From size 21511-122202, the bearings are fitted with wipers on both sides.

Recommended tolerances:
Shaft: h6
Housing: H6

The specified load ratings apply for hardened and ground shafts.Temperature range:-40 °C to +60 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21511 Miniature linear ball bearing

236 kB

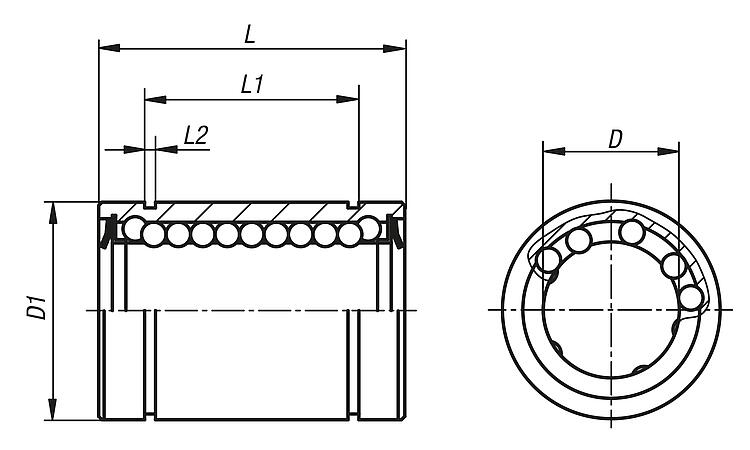

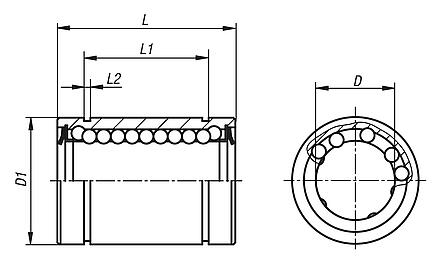

Drawings

Item selection/filter

	3 4 5 6 8 10 12 16 20 25	7 8 10 12 15 17 19 22 26 32 40	10 12 15 19 24 26 28 32 36 45 58	- 23 25 26,4 22,6 24,6 31,2 43,7	- 1,1 1,3 1,6 1,85	26 44 72 114 167 186 202 310 372 591 1162	27 50 84 132 204 234 257 352 440 689 1332				Reset
Order No.	D	D1	L	L1	L2	Dynamic load rating N	Static load rating N	CAD	Acc.	Price	Order
21511-030702	3	7	10	-	-	26	27			on request
21511-040802	4	8	12	-	-	44	50			on request
21511-051002	5	10	15	-	-	72	84			on request
21511-061202	6	12	19	-	-	114	132			on request
21511-081502	8	15	24	23	1,1	167	204			on request
21511-101702	10	17	26	25	1,1	186	234			on request
21511-121902	12	19	28	26,4	1,3	202	257			on request
21511-122202	12	22	32	22,6	1,3	310	352			on request
21511-162602	16	26	36	24,6	1,3	372	440			on request
21511-203202	20	32	45	31,2	1,6	591	689			on request
21511-254002	25	40	58	43,7	1,85	1162	1332			on request
