        Linear ball bearings with steel cage

Item description/product images

Show/filter all items

DescriptionMaterial:Outer jacket ball bearing steel.
Cage steel.
Balls steel.Note:The linear ball bearings correspond to series 3 of ISO 10285. With double-sided seals and a steel cage. The bearing is secured with DIN 471/472 circlips.

Recommended tolerances:
Shaft: h6
Housing: H7

Linear ball bearings with double-sided seals should be greased before installation.

The specified load ratings apply with the use of hardened and ground shafts.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21505 Linear ball bearings with steel cage

205 kB

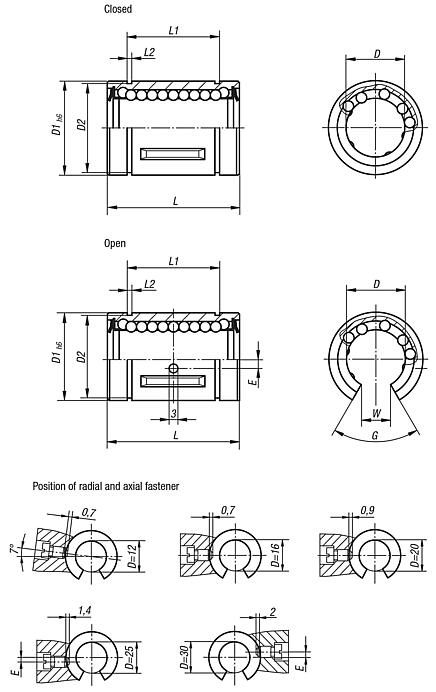

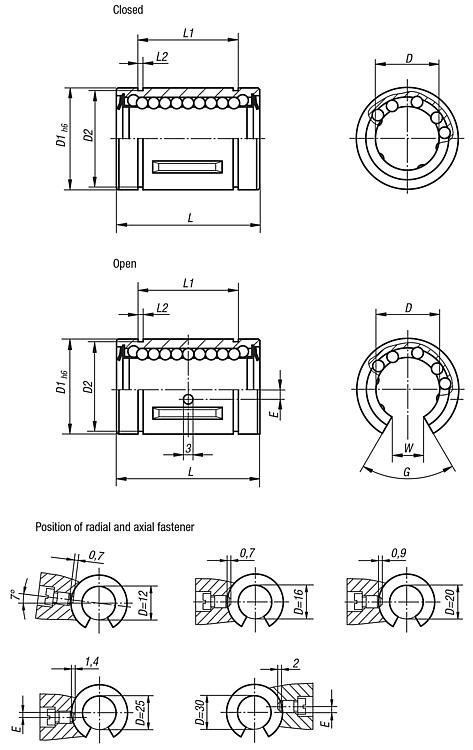

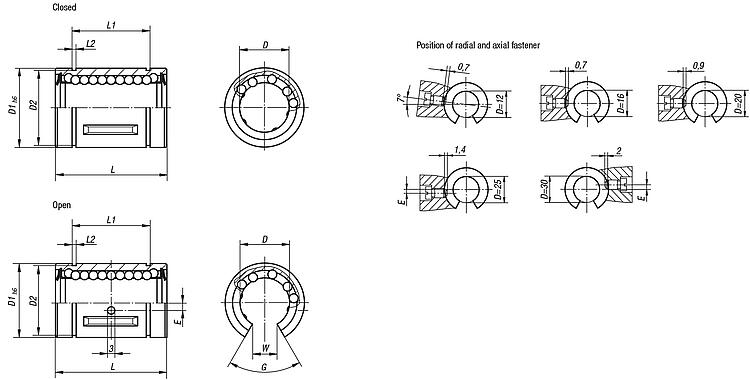

Drawings (total overview)

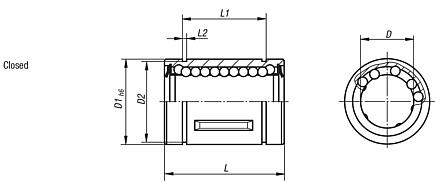

Linear ball bearings with steel cage, closed

More information

Drawings

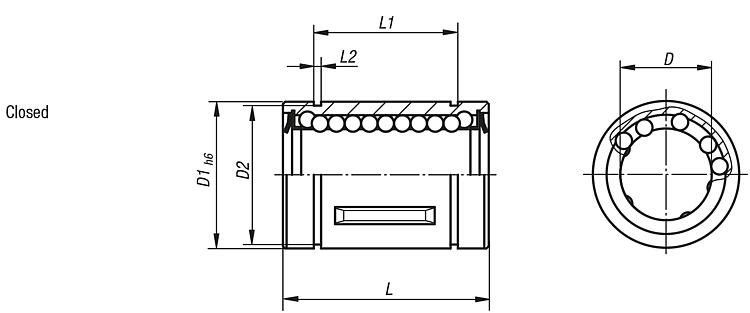

Linear ball bearings with steel cage, closed

Item selection/filter

Order No.	Version	D	D1	D2	L	L1	L2	Dynamic load rating N	Static load rating N	Price
21505-1202	closed	12	22	21	32 -0,2	22,9 -0,2	1,3	420	714	on request
21505-1602	closed	16	26	24,9	36 -0,2	24,9 -0,2	1,3	686	1092	on request
21505-2002	closed	20	32	30,3	45 -0,2	31,5 -0,2	1,6	924	1610	on request
21505-2502	closed	25	40	37,5	58 -0,3	44,1 -0,3	1,85	1470	2590	on request
21505-3002	closed	30	47	44,5	68 -0,3	52,1 -0,3	1,85	2100	3920	on request

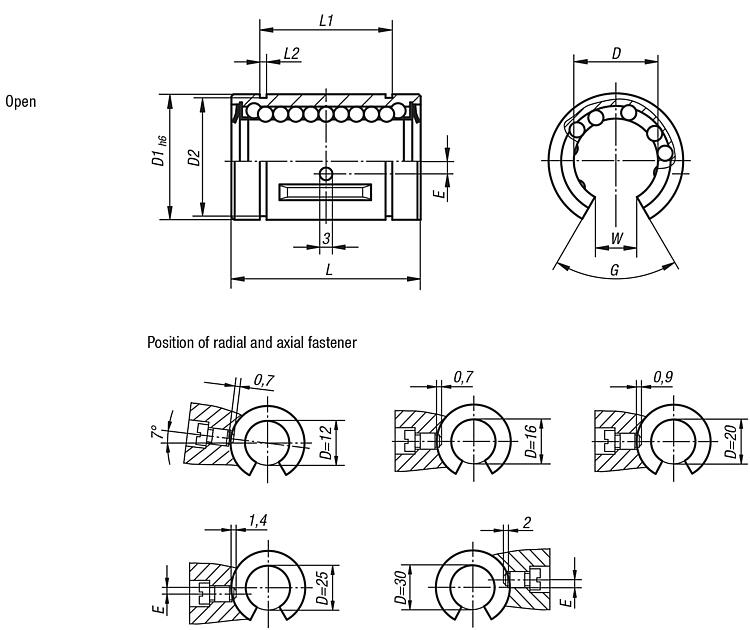

Linear ball bearings with steel cage, open

More information

Drawings

Linear ball bearings with steel cage, open

Item selection/filter

Order No.	Version	D	D1	D2	E	G	L	L1	L2	W	Dynamic load rating N	Static load rating N	Price
21505-1212	open	12	22	21	1,35	78°	32 -0,2	22,9 -0,2	1,3	7,5	420	714	on request
21505-1612	open	16	26	24,9	0	78°	36 -0,2	24,9 -0,2	1,3	10	686	1092	on request
21505-2012	open	20	32	30,3	0	60°	45 -0,2	31,5 -0,2	1,6	10	924	1610	on request
21505-2512	open	25	40	37,5	1,5	60°	58 -0,3	44,1 -0,3	1,85	12,5	1470	2590	on request
21505-3012	open	30	47	44,5	2	50°	68 -0,3	52,1 -0,3	1,85	12,5	2100	3920	on request
