        Linear ball bearings stainless steel

Item description/product images

DescriptionMaterial:Outer jacket stainless steel.
Cage stainless steel.
Balls stainless steel.Note:The linear ball bearings correspond to series 3 of ISO 10285. With double-sided seals and a stainless steel cage. The bearing is secured with DIN 471/472 circlips.

Recommended tolerances:
Shaft: h6
Housing: H7

Linear ball bearings with double-sided seals should be greased before installation.

The specified load ratings apply with the use of hardened and ground shafts.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21505-01 Linear ball bearings stainless steel

228 kB

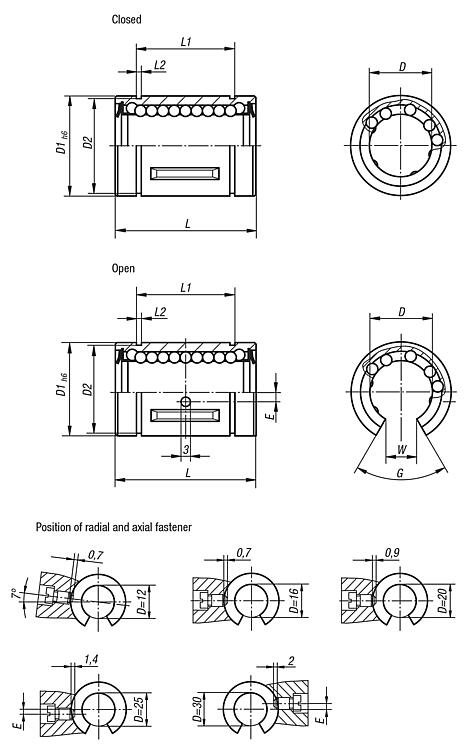

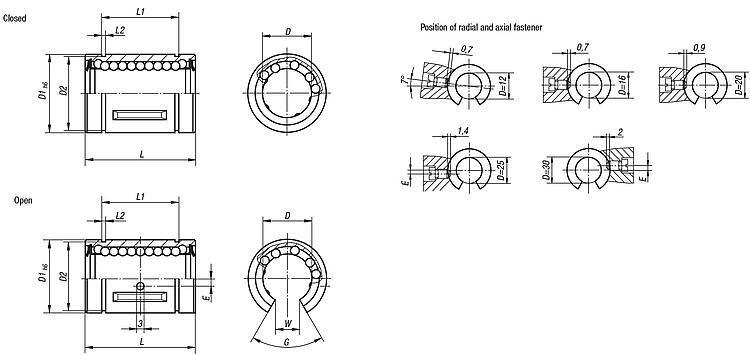

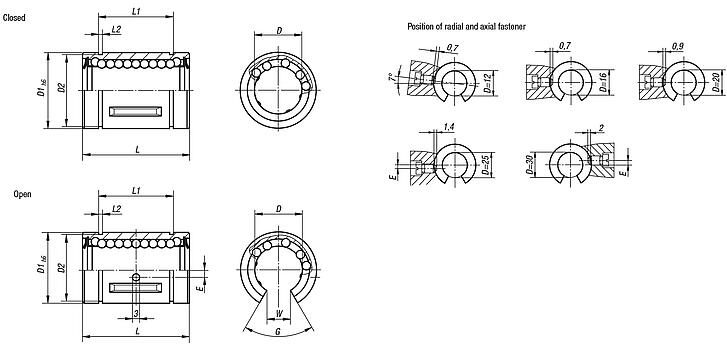

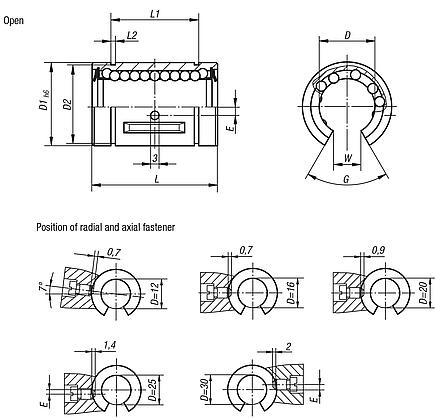

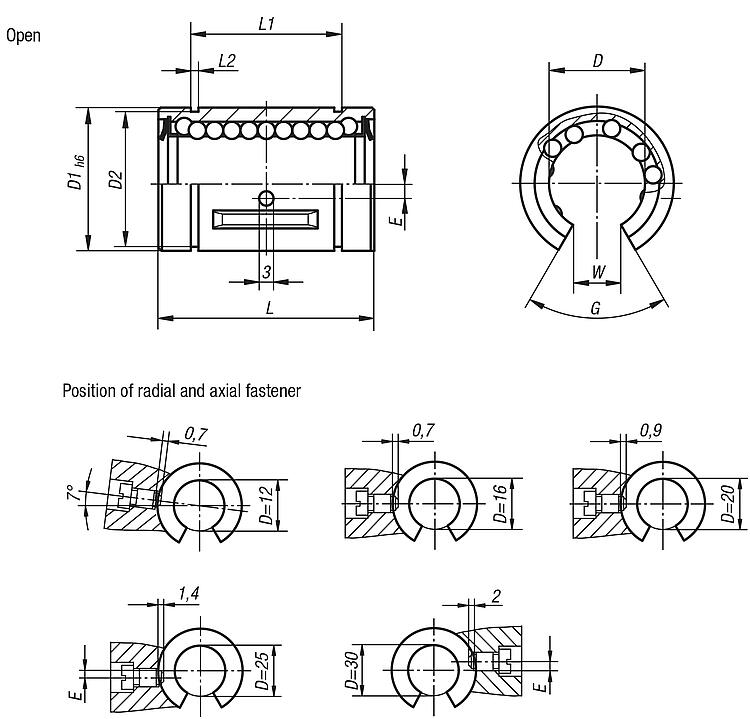

Drawings (total overview)

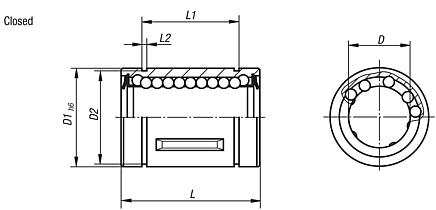

Linear ball bearing, stainless steel, closed

More information

Drawings

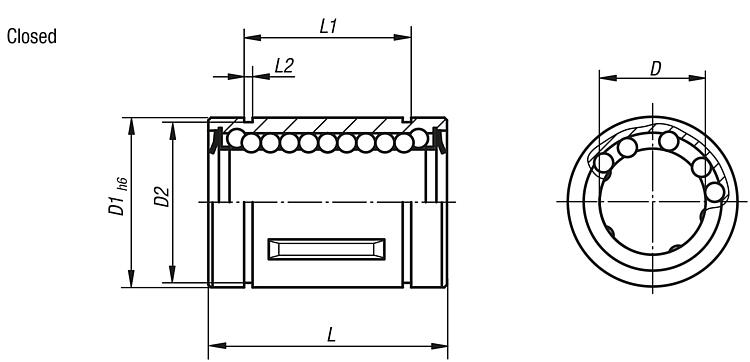

Linear ball bearing, stainless steel, closed

Item selection/filter

	closed	12 16 20 25 30	22 26 32 40 47	21 24,9 30,3 37,5 44,5	32 -0,2 36 -0,2 45 -0,2 58 -0,3 68 -0,3	22,9 -0,2 24,9 -0,2 31,5 -0,2 44,1 -0,3 52,1 -0,3	1,3 1,6 1,85	420 686 924 1470 2100	714 1092 1610 2590 3920				Reset
Order No.	Version 2	D	D1	D2	L	L1	L2	Dynamic load rating N	Static load rating N	CAD	Acc.	Price	Order
21505-01-1202	closed	12	22	21	32 -0,2	22,9 -0,2	1,3	420	714			on request
21505-01-1602	closed	16	26	24,9	36 -0,2	24,9 -0,2	1,3	686	1092			on request
21505-01-2002	closed	20	32	30,3	45 -0,2	31,5 -0,2	1,6	924	1610			on request
21505-01-2502	closed	25	40	37,5	58 -0,3	44,1 -0,3	1,85	1470	2590			on request
21505-01-3002	closed	30	47	44,5	68 -0,3	52,1 -0,3	1,85	2100	3920			on request
