        Linear ball bearings self-aligning, high load rating

Item description/product images

Show/filter all items

DescriptionMaterial:Housing plastic
Raceways ball bearing steel.
Balls steel.Note:The linear ball bearings correspond to series 3 of ISO 10285. With double-lip seal both ends. In comparison to standard linear ball bearings, these bearing have twice the load rating or eight times longer working life. The self-aligning function means that housing bore misalignments or bent shafts can be compensated for, the load distribution optimised and uniform load on all balls over the entire bearing length assured. The bearing is secured with DIN 471/472 circlips.

Recommended tolerances:
Shaft: h6
Housing: H7

Linear ball bearings with double-sided seal should be greased before installation.

The specified load ratings apply with the use of hardened and ground shafts.Temperature range:-20 °C to +80 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21515 Linear ball bearings self-aligning, high load rating

200 kB

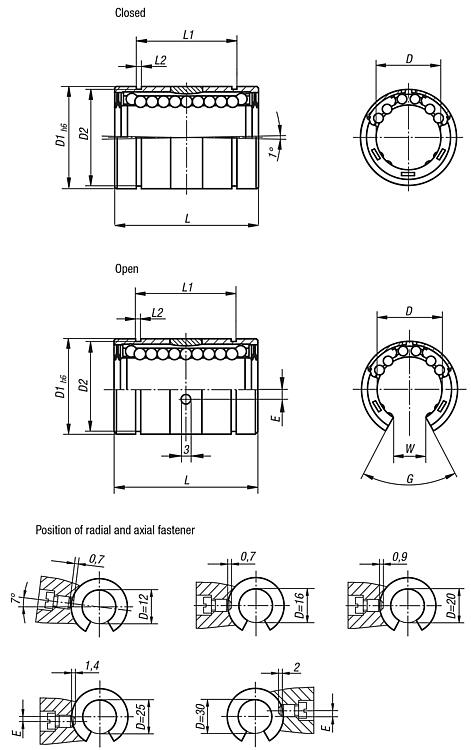

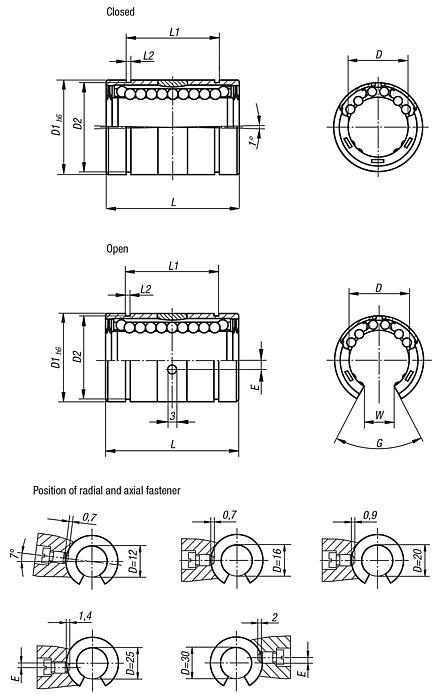

Drawings (total overview)

Linear ball bearings with angle error adjustment, high basic load rating, closed

More information

Drawings

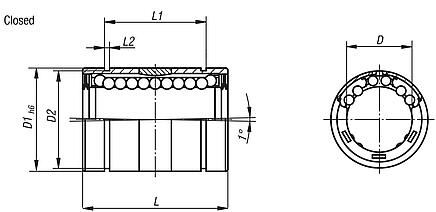

Linear ball bearings with angle error adjustment, high basic load rating, closed

Item selection/filter

Order No.	Version	D	D1	D2	L	L1	L2	Dynamic load rating N	Static load rating N	Price
21515-1602	closed	16	26	24,9	36	24,6	1,3	2200	2400	on request
21515-2002	closed	20	32	30,3	45	31,2	1,6	4000	4400	on request
21515-2502	closed	25	40	37,5	58	43,7	1,85	6700	7300	on request
21515-3002	closed	30	47	44,5	68	51,7	1,85	8300	9100	on request
21515-4002	closed	40	62	59	80	60,3	2,15	13700	15000	on request

Linear ball bearings with angle error adjustment, high basic load rating, open

More information

Drawings

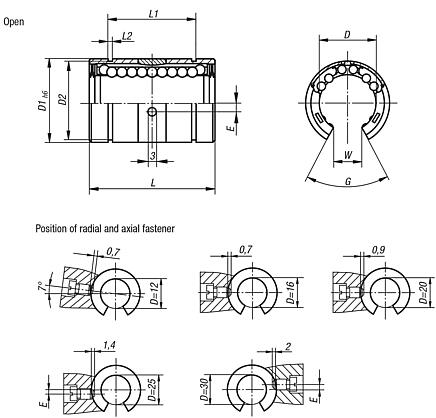

Linear ball bearings with angle error adjustment, high basic load rating, open

Item selection/filter

Order No.	Version	D	D1	D2	E	G	L	L1	L2	W	Dynamic load rating N	Static load rating N	Price
21515-1612	open	16	26	24,9	0	70°	36	24,6	1,3	9,4	2200	2400	on request
21515-2012	open	20	32	30,3	0	60°	45	31,2	1,6	10,2	4000	4400	on request
21515-2512	open	25	40	37,5	1,5	60°	58	43,7	1,85	14,4	6700	7300	on request
21515-3012	open	30	47	44,5	2	55°	68	51,7	1,85	13,9	8300	9100	on request
21515-4012	open	40	62	59	1,5	60°	80	60,3	2,15	18,2	13700	15000	on request
