        Linear ball bearings with plastic cage

Item description/product images

Show/filter all items

DescriptionMaterial:Outer jacket ball bearing steel.
Cage plastic.
Balls steel.Note:The linear ball bearings correspond to series 3 of ISO 10285. With double-sided seal. The linear ball bearings have a plastic cage which results in quiet and outstanding running properties. We recommend using linear ball bearing with steel cages for application temperatures over +80 °C. The bearings are secured by DIN 471/472 circlips.

Recommended tolerances:
Shaft: h6
Housing: H7

Linear ball bearings with double-sided seal should be greased before installation.

The specified load ratings apply with the use of hardened and ground shafts.Temperature range:-20 °C to +80 °C.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 21500 Linear ball bearingswith plastic cage

182 kB

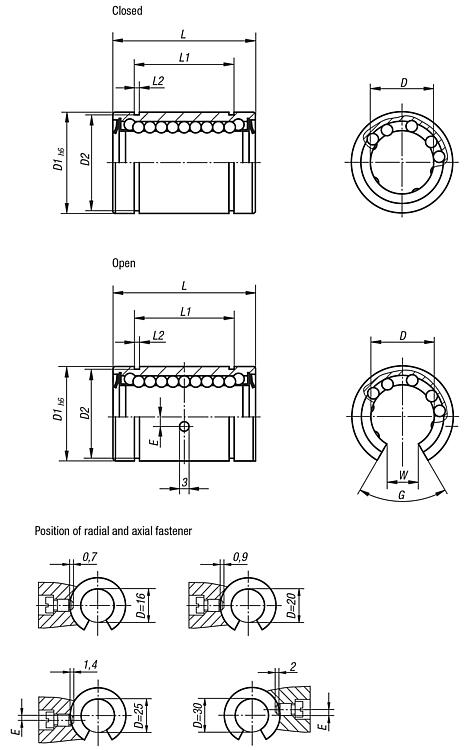

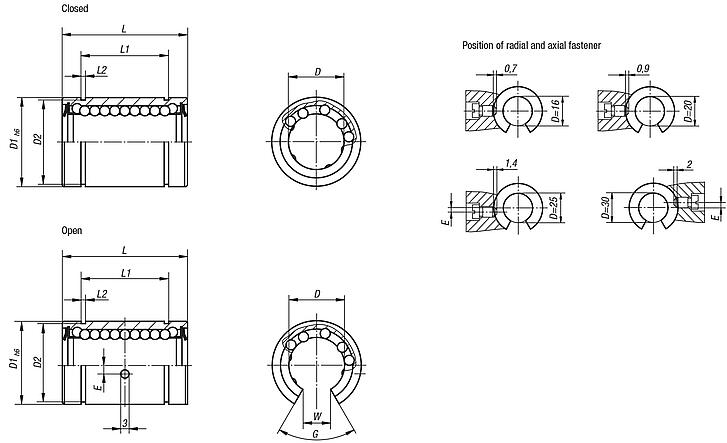

Drawings (total overview)

Linear ball bearings with plastic cage, closed

More information

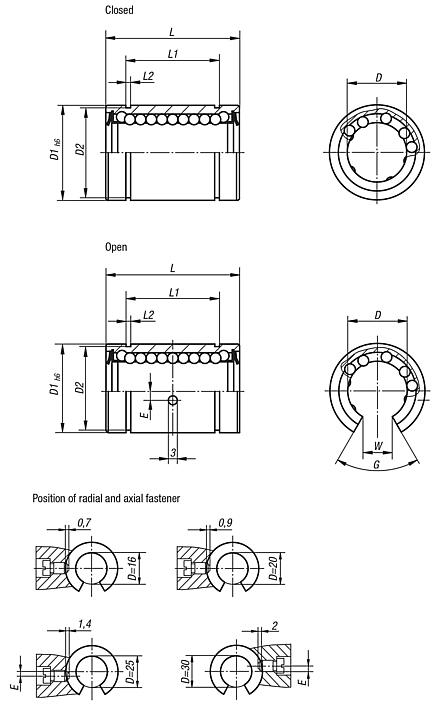

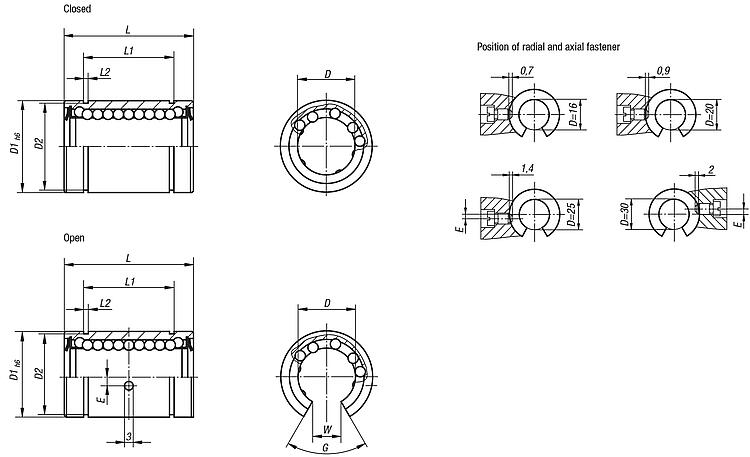

Drawings

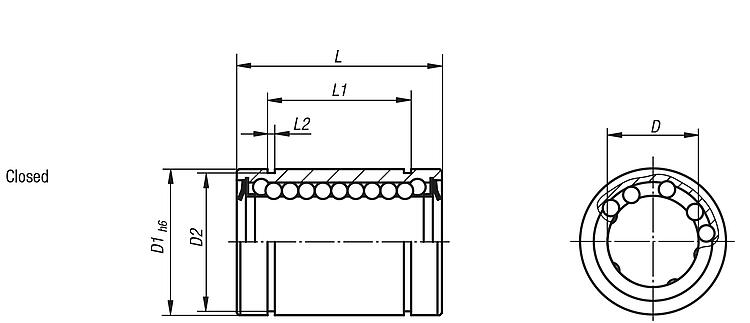

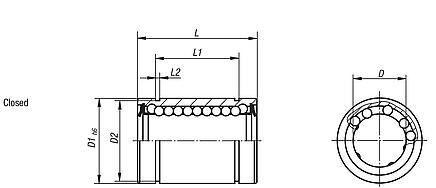

Linear ball bearings with plastic cage, closed

Item selection/filter

Order No.	Version	D	D1	D2	L	L1	L2	Dynamic load rating N	Static load rating N	Price
21500-1202	closed	12	22	21	32 -0,2	22,9 -0,2	1,3	520	800	on request
21500-1602	closed	16	26	24,9	36 -0,2	24,9 -0,2	1,3	590	910	on request
21500-2002	closed	20	32	30,3	45 -0,2	31,5 -0,2	1,6	880	1400	on request
21500-2502	closed	25	40	37,5	58 -0,3	44,1 -0,3	1,85	1000	1600	on request
21500-3002	closed	30	47	44,5	68 -0,3	52,1 -0,3	1,85	1600	2800	on request

Linear ball bearings with plastic cage, open

More information

Drawings

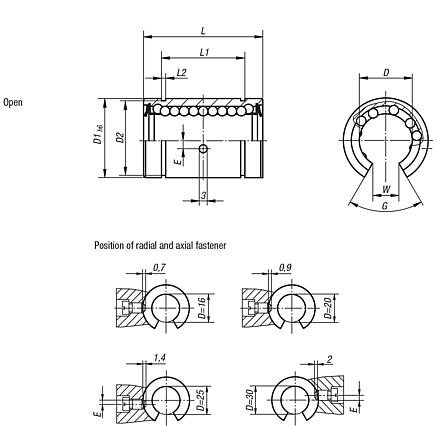

Linear ball bearings with plastic cage, open

Item selection/filter

Order No.	Version	D	D1	D2	E	G	L	L1	L2	W	Dynamic load rating N	Static load rating N	Price
21500-1612	open	16	26	24,9	0	78°	36 -0,2	24,9 -0,2	1,3	10	590	910	on request
21500-2012	open	20	32	30,3	0	60°	45 -0,2	31,5 -0,2	1,6	10	880	1400	on request
21500-2512	open	25	40	37,5	1,5	60°	58 -0,3	44,1 -0,3	1,85	12,5	1000	1600	on request
21500-3012	open	30	47	44,5	2	50°	68 -0,3	52,1 -0,3	1,85	12,5	1600	2800	on request
