        Swivel bales

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:Every swivel bale is load tested to 5x safety factor. The flat and light design make this swivel bale easier to use than similar swivel bales. The swivel bale is installed using a spanner or hexagon key depending on type.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07775 Swivel bales

156 kB

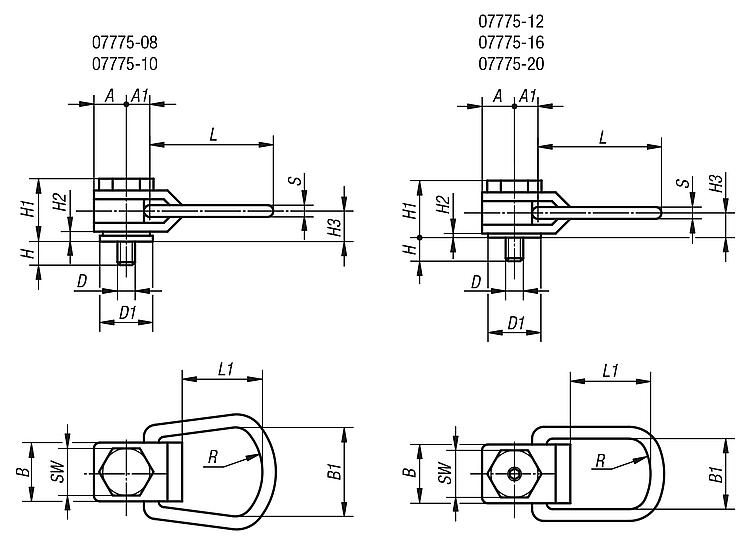

Drawings

Item selection/filter

Order No.	A	A1	B	B1	D	D1	H	H1	H2	H3	L	L1	R	S	SW	hexagon socket	max. permissible load kg	Price
07775-08	13	13	25	44	M8	21	16	33	3	14	76	52	25	8	19	-	325	on request
07775-10	13	13	25	44	M10	21	20	33	3	14	76	52	25	8	19	-	500	on request
07775-12	22	19	44	51	M12	35	24	48	4	21	110	75	38	13	32	6	725	on request
07775-16	22	19	44	51	M16	35	32	48	4	21	110	75	38	13	32	8	1400	on request
07775-20	29	25	57	67	M20	48	40	59	6	26	145	102	51	16	44	10	2290	on request
